Auto blood culture detection system
DL-Bt system specification
|
|

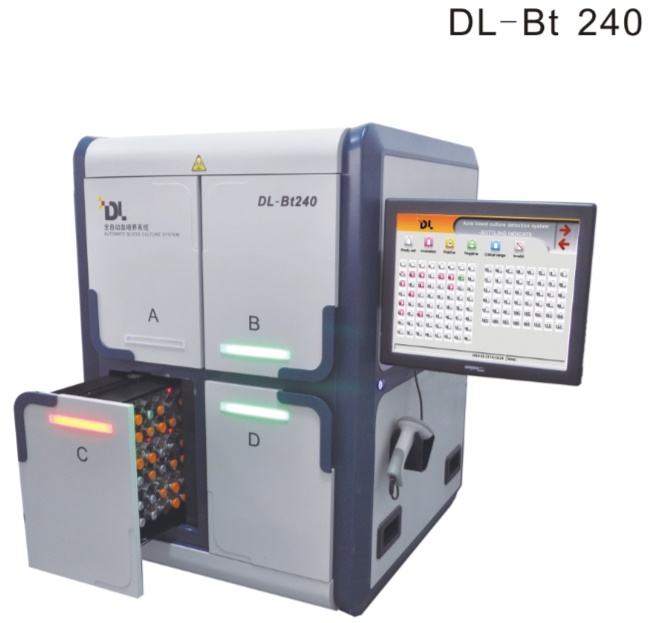

DL-Bt 240 |
|
Power supply |
AC 220V± 22V, 50/60 HZ±1HZ |
|
Ambient temp. |
5ºC – 35 ºC |
|
Atmospheric pressure |
76 kPa – 106 kPa |
|
Instrument dimensions |
700 * 853 * 1060 mm |
|
Net weight |
106 kg |
|
Carton size |
1024 * 859 * 1474 mm |
|
Handling |
50-55 bottle/day |
|
Touch screen |
Internal 17 inch |
|
Local optional purchase |
Mouse and keyboard |
The above specification is subject to change without notice.
Culture bottle type:
1. Adult aerobic / anaerobic blood culture bottle.
2. Children’s blood culture bottle (Pediatric)
Advantages of Resin Media:
1. Proven, effective neutralization of a wide variety of antimicrobial improves recovery and shorten the time for detection.
2. Resin beads can lyse WBC and release bacteria inside to improve detection rate.
3. Colorless resin beads won’t cause interference of microscope examination against activated carbon.
DL Blood culture bottle features
1. Detection of a wide range of microbes, including fungi, even fastidious bacteria.
2. Multi-layer polymeric fiber bottle. Light weigh and unbreakable, aboid biohazard.
3. Delayed-vial-entry capabilities up to 48 hours at room temperature
4. Vacuum blood sampling. Improving safety and causing less contamination.
|
Bacteria name & type |
Colony-forming units (CFU) |
Result report time (h) |
|
S.pyogenes, S.pneumoniae |
≤100 |
10-15 |
|
A.P.aeruginosa A.baumannii |
≤100 |
11-18 |
|
E.coli, S.aureus |
≤100 |
4-12 |
|
Haemophilus, gonococcus |
≤100 |
20-36 |
|
Fungus, brucella |
≤100 |
15-48 |
DL-Bt blood culture system features
- Test principles: colorimetry & carbonate
- Specimen type: blood and various sterile body fluid
- Linux system with touch screen
- LIS available
- Data analysis and statistics
- Adopt continuous swinging vibration culture mode
- Detection in every 10 minutes by each independent detector
- Alarm by audio, door light flash and screen flash
- Together with barcode scanner for easy data input
- Printing function available
if you have any inquiry about this product, please feel free to let us know.
